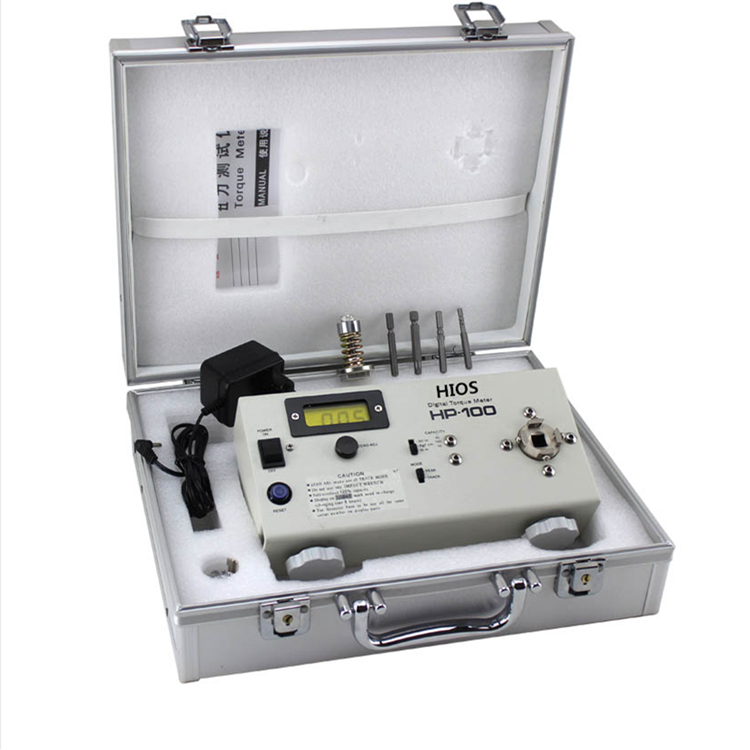

The HP-100 bench mount torque tester has a wide torque measurement range and come complete with two spring rundown joints and a protective carrying case. The tester can store 800 data points and allows the user to enter high / low torque limits for Good/NG indication during testing. Built-in statistical calculations allow the user to review min, max, and average values for a series of up to 30 torque readings.
Model | HP-10 | HP-50 | HP-100 | |
Peak range | N.m | 0.015-1.000 | 0.15-5.00 | 0.15-.10.00 |
N.cm | 1.5-100.0 | 15-500 | 15-1000 | |
Lbf.in | 0.15-9.00 | 1.5-45.0 | 1.5-90.0 | |
(Kgf.cm) | 0.15-10.00 | 1.5-50.0 | 1.5-100.0 | |
Accuracy | In the range of ± 0.5% (full scale) | |||
Power | 5 1.2V 1000mA Ni-MH battery | |||
Working hours after fully charged (Continuous use) | About 16 hours | |||
Battery Life | Around 500 times rechargeable | |||
Size | Si See Dimension Chart | |||
Weight | 1.8Kg | |||
AC Adapter | In the 100-240V AC (50 or 60Hz) to work | |||
*Turning off automatically (it will automatically turn off 10 minutes after leaving it without use).
*Storing data (it can record 100 torque data,and can store, browse partly delete and completely delete them).
*It can calculate the MAX, MIN and AVE.
*Deleting torque data automatically (it can adjust the time of automatic reset with the seitch).
*Adjusting zero automatically (it can automatically adjust zero) .
*Setting torque data and reminding workers with the buzzer.
