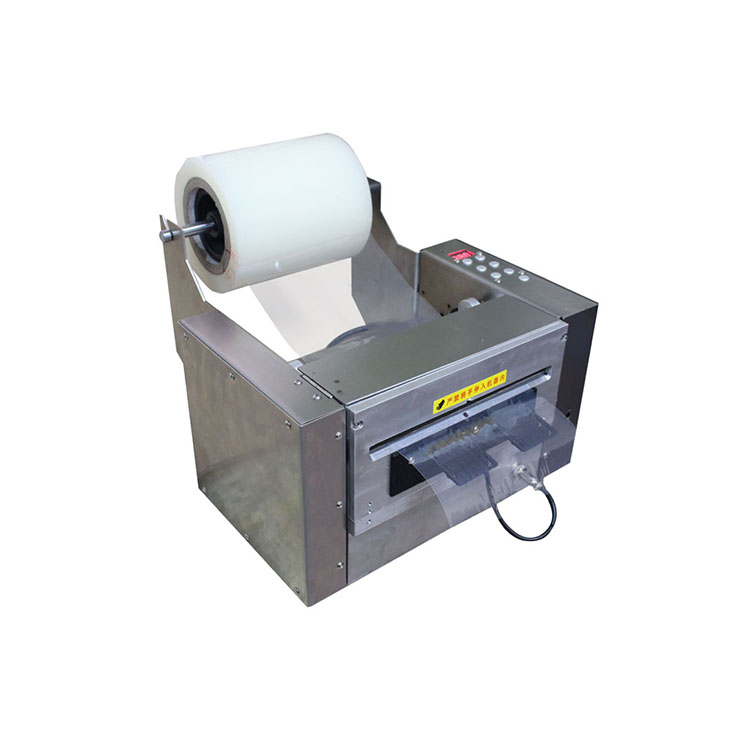

ZCUT-200 automatic tape dispenser is a heavy duty tape cutting machine and is ideal for cutting extra wide tapes, protective film. and supports 24 hours continuous working
CUT WIDTH | CUT LENGTH | TAPE INNER DIAMETER | TAPE OUTER DIAMETER | VOLTAGE & POWER | DIMENSION & WEIGHT |
20~200 mm | 20~999 mm | 75mm, | 300 mm | AC220V/110V & 50W | 325(W)*270(D)*335(H)mm& 10KG |
Environment temperature:－5℃～40℃
Environment humidity: ﹤80%RH
Tape transmission speed: 50HZ / 44 points (100mm long) 60HZ / 47 points (100mm long).
Fit Tape: Adhesive tape, non-adhesive tape, protective film, alunium foil tape, cloth tape,etc.
*LED digital display and set shear length.
*Automatic conveying and shearing set length automatic mode after.
*Can not sticky adhesive tape and various types of shear.
*Photoelectric switch to detect glue.
*Stepper motor transport, high cutting precision.
*Shear maximum width 120mm.
*Shear speed, a machine at the same time the use of double station.
*Stainless steel shell, durable.
*Strength design, can be used for 24 hours.
