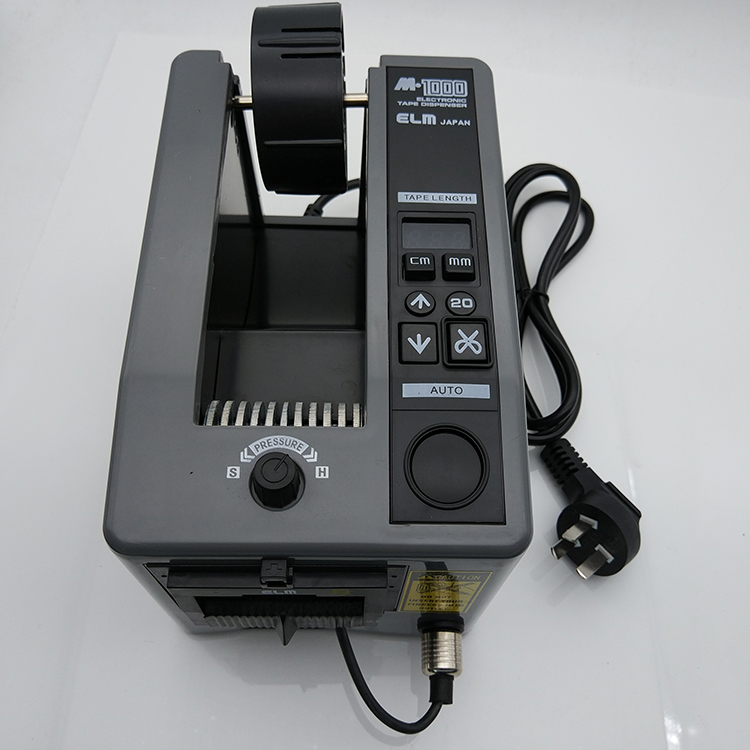

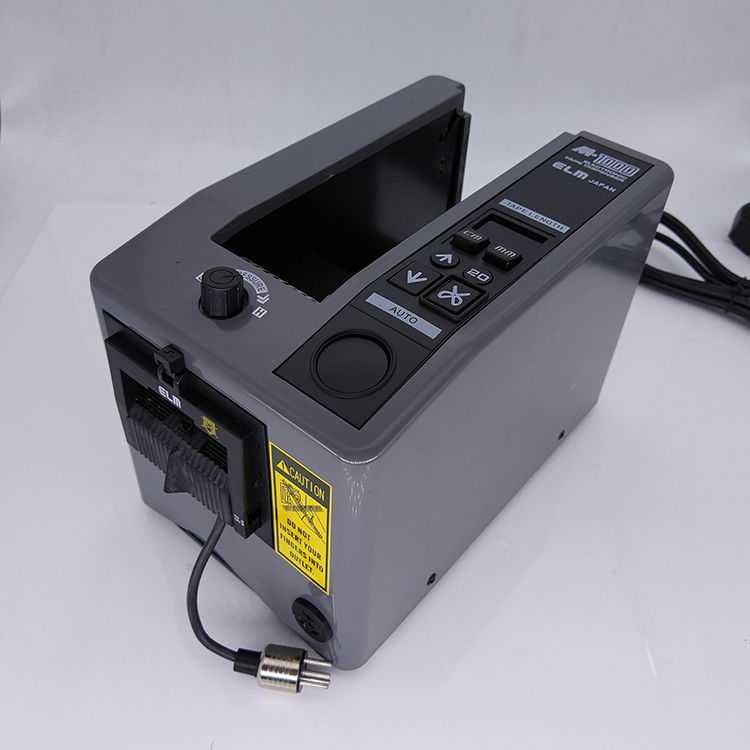

ELM M1000 electronic tape dispenser is ideal for industrial applications which require repetitive taping, program a defined length to start cut automatically.
CUT WIDTH | CUT LENGTH | TAPE INNER DIAMETER | TAPE OUTER DIAMETER | VOLTAGE & POWER | DIMENSION |
7~50 mm | 5~999 mm | 75/32/25 mm | 180 mm | AC220V/110V & 18W | 137(W)*218(D)*150(H)mm |
Fit for cutting adhesive tape, double-sided tape.
Applied tape: PVC tape, paper tape, cloth tape, glass tape, pp tape, kraft adhesive tape, ect.
Application: Automotives, Electric & Electronics, Machinery & Hardware, Commodity, Beverage, Apparel, Medical, Chemical, Food, etc.
1. Manual Mode and Automatic Mode, freely switching.
2. Digital display cut length.
3. "Length Setting" memory, avoid repetitive operation.
4. Providing security function of tape induction auto output.
5. Minimum cut length: 5mm.
6. Suitable for cutting adhesive tape.
7. Infraed induction auto output tape.
8. Can adjust the presure supply to avoid tape crimp.
9. The opetating station is made by fire resistan.
*To operate automatic tape dispenser remove the tape by at them tape outlet, the tape at the length will come out automatically and cut.
*Size indications can be easily seen by LED displays, and operations are simple, only press the key or key to set the length.(setting limit: when 20mm to 999mm)
*When a long tape is neededo, keep pressing key to desired length.(in this case, press: key to cut )
*The cutter unit cassette type can be removed and replace easily. (Tape jamming can be also easily fixed.)
