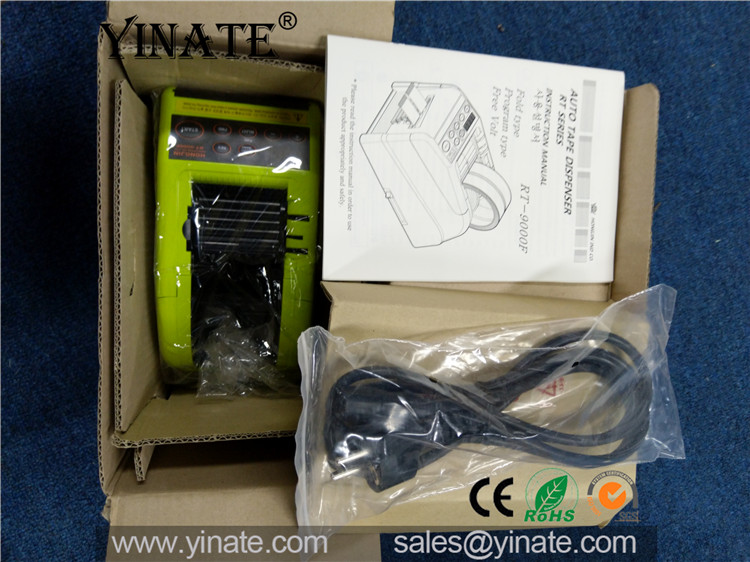

RT-9000F Electronic adhesive tape dispenser is same to RT-7000, it can cut the cut length of the tape 2-6 kind each to be different.The special feature of RT-9000F is when tapes are come out, the end of tape is folded automatically.
Tape Width | 6-60mm |
Tape Length | 5-999mm |
Usable Tapes | Acetate / Glass Cloth, Double-Sided, Normex, Filament, Kapton, Electric, |
Usable Non Adhesive Material: | Protection Film, Aluminum / Copper Foil, Tube, Plastic Band, Magic Tape |
Feeding Speed | 200 mm /sec. |
Max. Outside Dia. of Roll | 300mm |
Accessories | Separator (for two rolls), Tweezers, Blade Oil |
Power Requirement | Free Volt (80-350V possible) |
Body Material | Anti-Static ABS |
Dimensions & Weight | 116(W) x 140(H) x 213(D) mm & 2.5Kg |
Safety function and design.
Memory function (Can set 6 different length before use).
Can put any size of roll without using bobbin.
Can cut from 5mm to 999mm in length.
Can cut protection film, Aluminum Foil, Copper Foil, Insulation material and more .
Can hold the film or tape by using flexible tape support.
Preset and loop counter.
Compact body answers to cell-system.
Can be used 2 rolls at a time.
Dual photo sensor.
Build-in tweezers, oil and separator for easy to use.
By the auto feed mechanism, if you remove the tape by at the tape outlet,
the next tape at the length will come out automatically and cut.
