ZCUT-10 ELECTRONIC TAPE DISPENSER

ZCUT-10 Automatic carousel tape dispense is the ideal for multi-operator applications. bobbin free, can put any size of roll. Use for cutting narrow adhesive tape dispenser, applicable for many operators to use at a time.

Specifications

CUT WIDTH

CUT LENGTH

TAPE INNER DIAMETER

TAPE OUTER DIAMETER

VOLTAGE & POWER

DIMENSION

3~25 mm

15~70 mm

75/32/25 mm

150 mm

AC220V/110V & 25W

150(W)*258(D)*126(H)mm & 2.2kg

Fit Tape: 25mm adhesive Tape

Applied tape Material: Filament, polyimide tape used in BGA soldering,Acetate, Glass Cloth, Double-Sided, Plastic, Aluminum Foil, Cellophane, Masking, polyethylene, Copper Foil Cotton, Cloth, Mylar, Teflon, Paper, and etc.

Application: Automotives, Electric & Electronics, Machinery & Hardware, Commodity, Beverage, Apparel, Medical, Chemical, Food, etc.


Features

*Easy to change the blades without adjustments.

*Change the length of tape and spacing by knob.

*Movable Sensor can set the place where Turn Table stops.

*Push button to automatic feed and cut tapes.

*Circling half-turn at each push.

*Tapes on the turn table for easy pick.

*Set cut pieces by Movable Sensor.

*Provide consistent tape lengths.

*Accept to cut many kinds of tape.

*Clean and neat cut.

*Bobbin free, can put any size of roll.

*Reduce waste and good for your environment.


Product Details Show

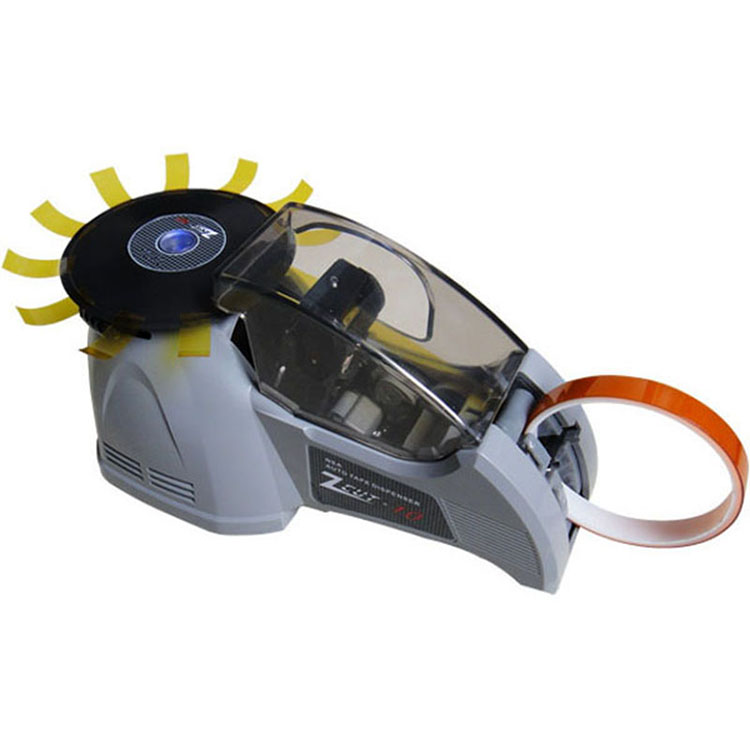

Product Picture
